Refurbishment of Shower Area Floors at CBS Arena

Client Requirements

Nearly 20 years after being involved in the construction of Coventry City FC’s arena, Zenith Contract Services were approached once again, this time to assist in refurbishing the home team’s changing room shower area floors. The existing tiled surface had begun to show wear and had lost some of its slip-resistant properties, prompting the need for an upgrade that would be both functional and aesthetically appealing.

Overview of Works

Zenith’s Resin Flooring Division proposed the installation of Altroscreed Quartz, a 6mm thick decorative epoxy resin screed known for its textured, slip-resistant qualities. This solution would effectively overlay the existing tiles without the need for removal, providing an efficient and cost-effective refurbishment.

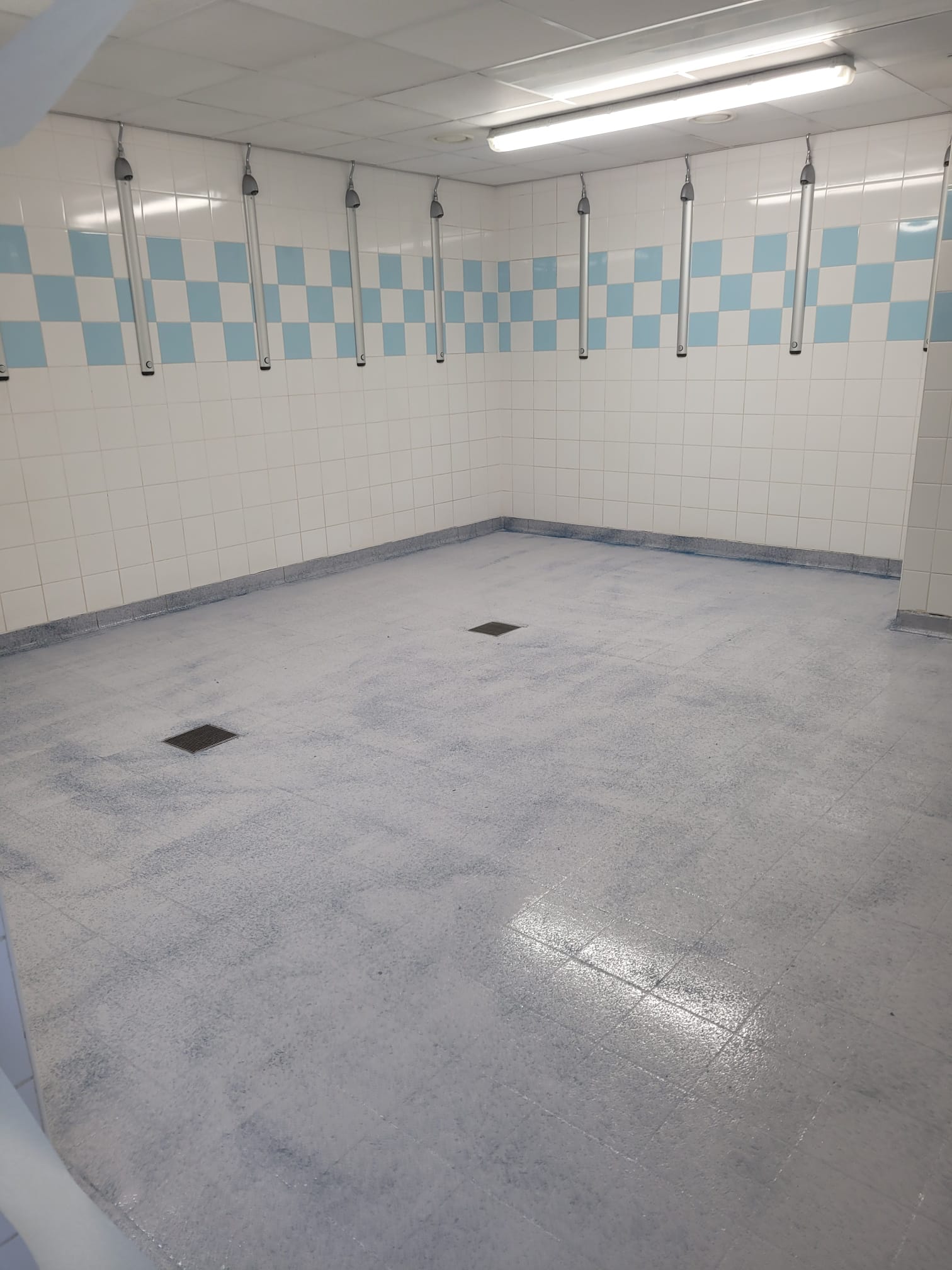

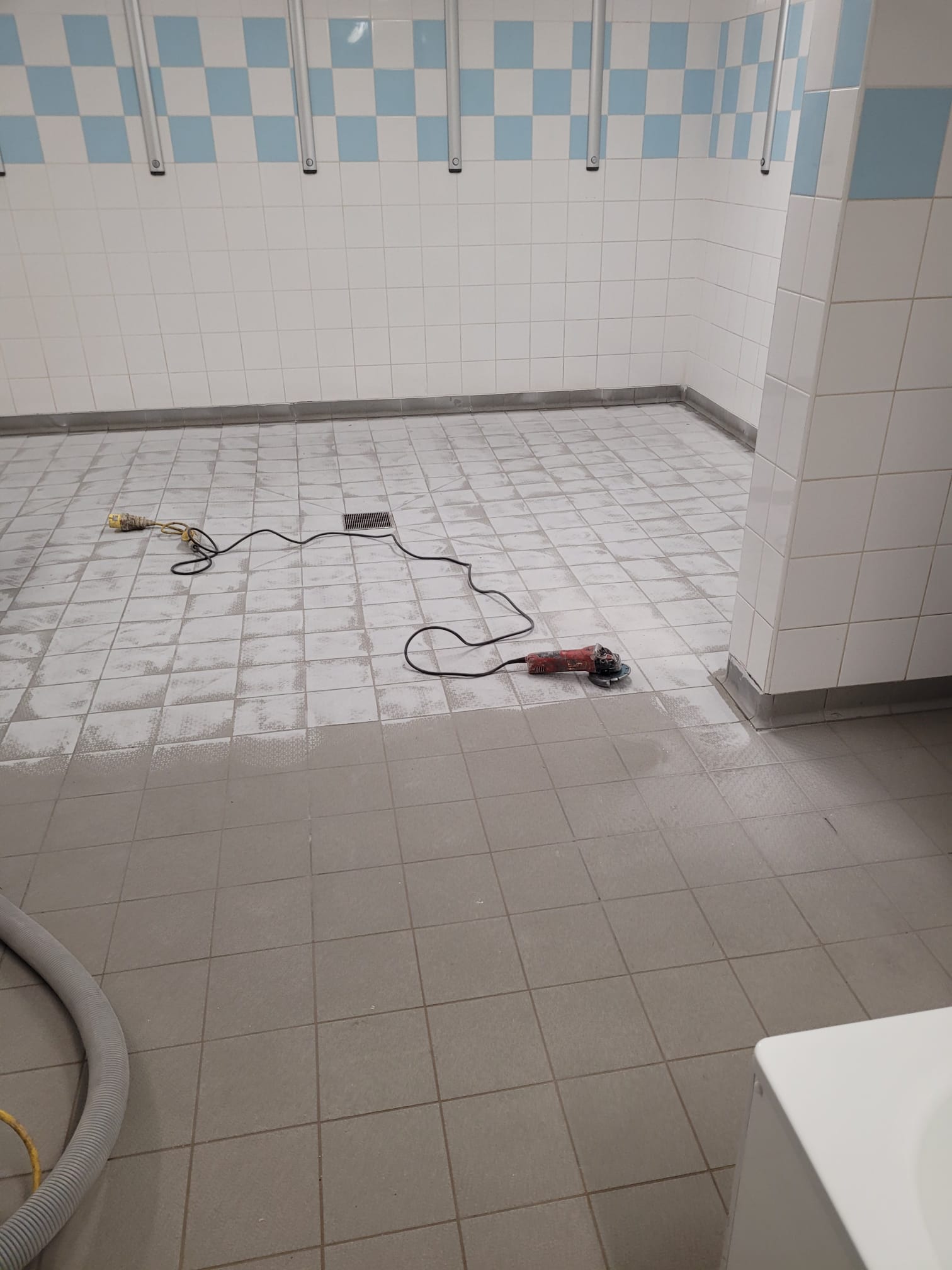

• The first step involved diamond grinding the old tiles to prepare the surface for the new screed.
• An application of Altroproof Solo primer with a light scattering of quartz sand was then applied, creating the perfect base for the Altroscreed Quartz.

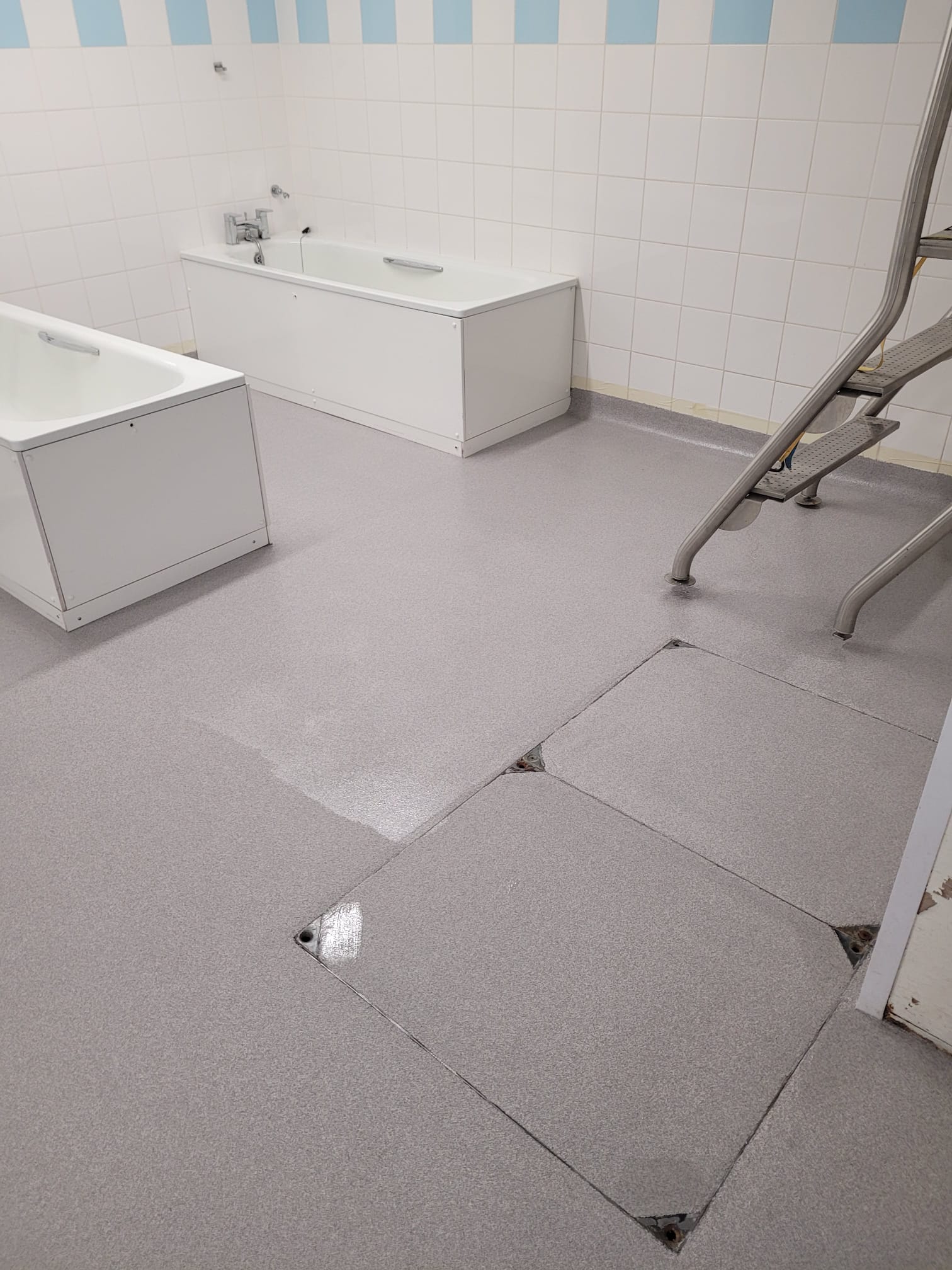

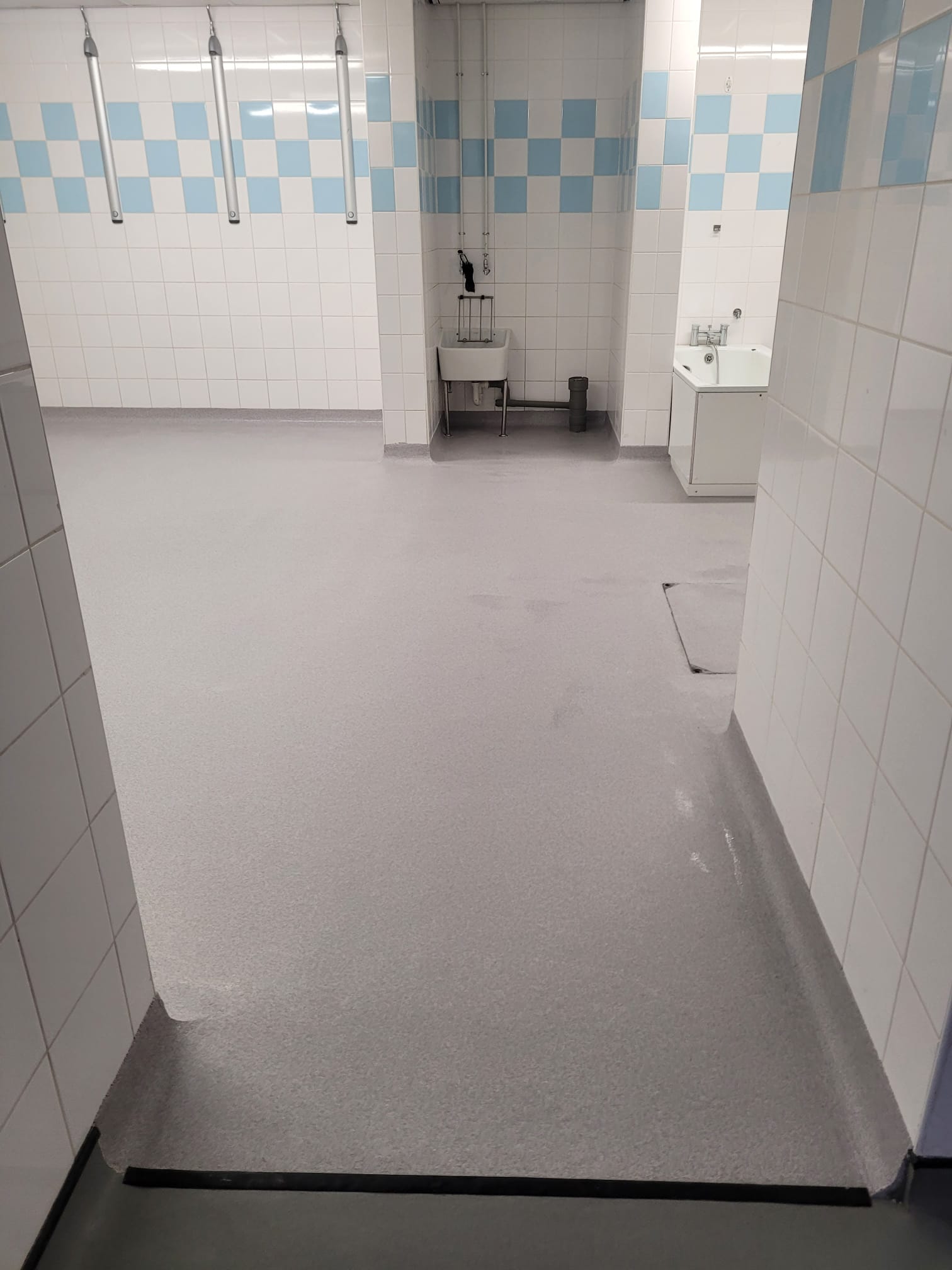

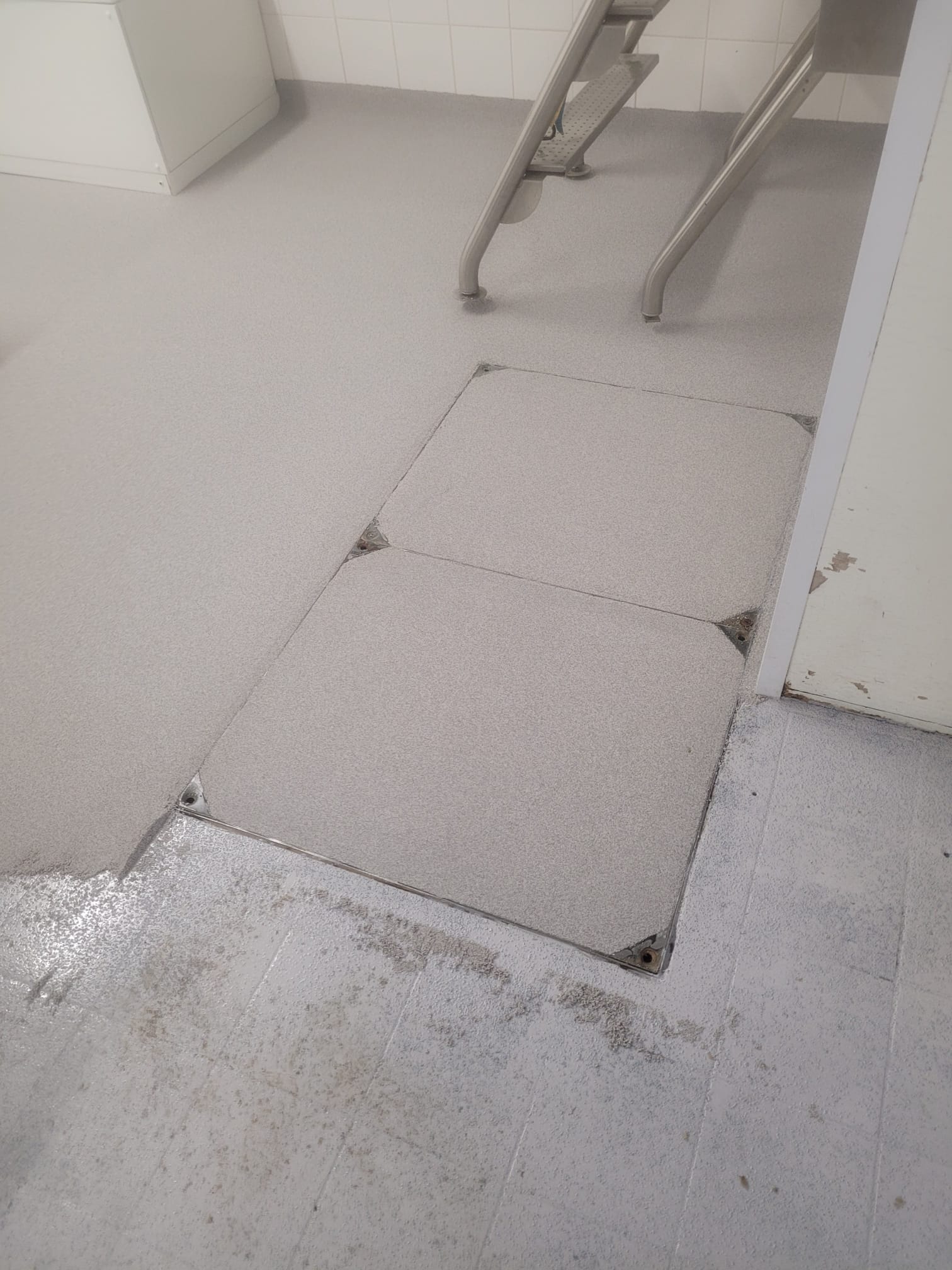

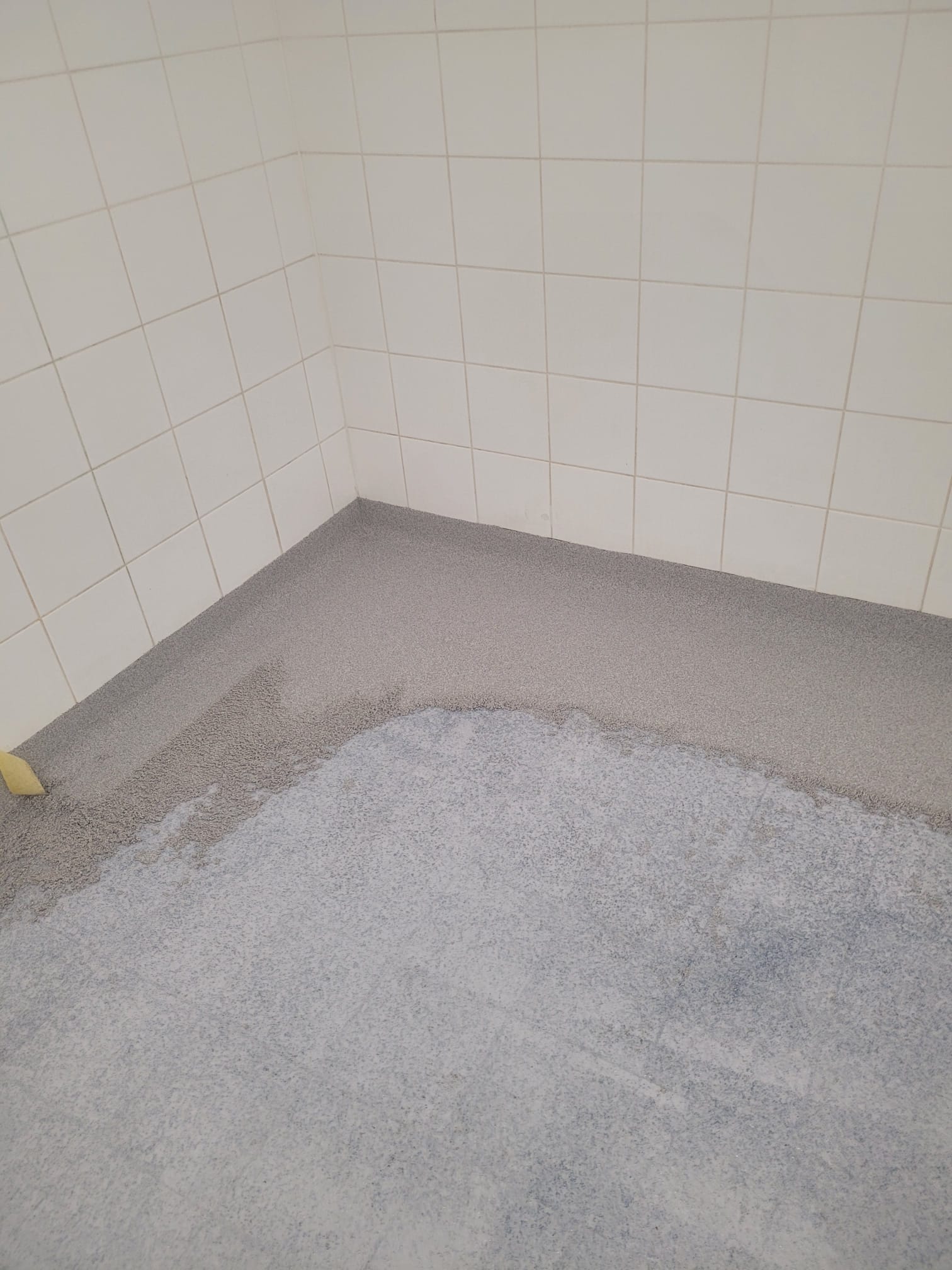

• After allowing the primer to cure overnight, the next day, the team applied the Altroscreed Quartz along with a radius coved skirting to the perimeter walls. Extra attention was given to ‘live’ access covers to ensure smooth transitions.
• The project was completed with the application of Altroseal and Altroseal UVR WB, providing a durable and UV-resistant topcoat.

Project Challenges

The key challenge was rejuvenating the existing tiles without having to remove them, while ensuring the new surface provided superior slip resistance and durability. The flooring also had to be easy to clean and maintain, while the surrounding perimeter walls required the addition of coved skirting for a seamless finish.
